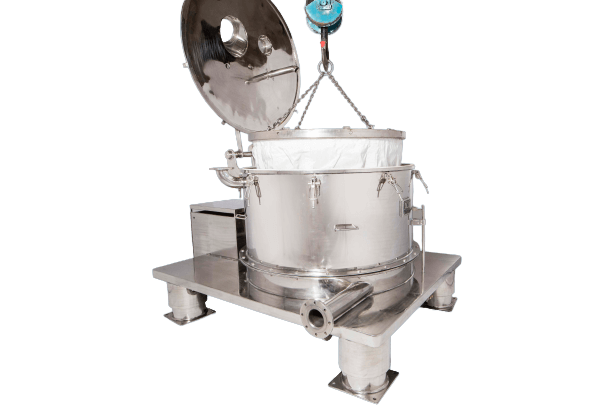

Bag Lifting Type Centrifuges are basically upgraded form of Manual Top Discharge Centrifuges. These machines have lip detachable from the basket which helps in easy removal of filter bag with solid material from outside the basket. The time required for cake removal in bag lifting type centrifuge Machines is very negligible & also Manual contact with cake is minimised. The lifting of bag/cake is carried out by means of cGMP Hydraulic Lifting Device which eliminates usage of chain pulley lifting mechanism, thereby preventing product contamination .
Special Characteristics of our Bag Lifting Type Centrifuges:
- Instant discharge/unloading of cake by means of a hydraulic lifting device
- Comparatively increased production due to reduced batch time.
- Cake spillage / Loss will is negligible
- Cleaning or changing of filter cloth outside the centrifuge
- Reduced Human contact.
- Fully opening of Lid gives/ Ensures more space for better cleaning
- Sturdy design & construction as per cGMP norms.
- Four-point suspension type which requires negligible Foundation
- The centrifuge is manufactured as per international standards with an inertia platform & AntiVibration mounts to ensure smooth operation.
- Vapour Tight Arrangement
- Nitrogen purging system for Basket & bearing housing/ casing
- Safety Devices such as Zero Speed Lock for the Centrifuge cover.
- Full validation services are available including DQ, OQ, IQ, And Maintenance Manual.
- cGMP construction for Pharmaceutical Models.
- Kilolab Model to Production Models available
Enhanced/ Optional Features of our Bag Lifting Type Centrifuges :
- Fully opening Outer case/ Body with CIP cleaning for better cleaning/ accessibility and validation purpose for special pharmaceutical process application
- Variable Frequency Drive with the Dynamic Braking System
- Cake thickness monitor system.
- Excess Vibration Monitoring & Tripping system
- Clutch Pulley
- High-Speed RPM for Basket for special application
MOC:
- In GMP Model all contact Parts & non-contact Parts are SS316 material.
- In Non-GMP Model All contact Parts SS316 MS Rubbesling, or any Customer Requirement material, and All non-contact Parts MS or CI material.
- In Coating, we provide Anti Static Halar, Tefzal, Teflon, PP, Rubber line, or any Customer Requirement.
